FOKKER 27 GENERAL.



FOKKER 27 VERSIONS.

TYPE ENGINE FIRST FLIGHT PRODUCED REMARKS
F27-Mk 100 RR DART 6 Mk 514-7 23-03-1958 85
F27-Mk 200 RR DART 6 Mk 528-7 20-09-1959 117
F27-Mk 300 RR DART 6 Mk 514-7 02-05-1960 4
F27-Mk 300M RR DART 6 Mk 514-7 17-08-1960 9 para drop door
F27-Mk 400 RR DART 7 Mk 528-7 or 532-7 06-10-1961 16
F27-Mk 400M RR DART 7 Mk 528-7 or 532-7 24-04-1965 81 para drop door
F27-Mk 500 RR DART 7 Mk 536-7R 15-11-1967 123
F27-Mk 600 RR DART 7 Mk 536-7R 22-06-1967 131
F27-Mk 700 RR DART 6 Mk 514-7 29-12-1969 2 converted Mk 100
F27 Maritime RR DART 7 Mk 536-7R 23-11-1978 15



FOKKER 27 TECHNICAL DATA.

TYPE LENGTH WINGSPAN HEIGHT CEILING SPEED RANGE PAX
F27-Mk 100 23.56 m 29.00 m 8.50 m 8475 m 486 km/h 1715 km 40
F27-Mk 200 23.56 m 29.00 m 8.50 m 8475 m 486 km/h 2148 km 44
F27-Mk 300 23.56 m 29.00 m 8.50 m 8475 m 486 km/h   44
F27-Mk 300M 23.56 m 29.00 m 8.50 m 8475 m 486 km/h 2030 km 44
F27-Mk 400 23.56 m 29.00 m 8.50 m 8475 m 486 km/h   44
F27-Mk 400M 23.56 m 29.00 m 8.50 m 8475 m 486 km/h   44
F27-Mk 500 25.06 m 29.00 m 8.84 m 8475 m 486 km/h 1315 km 52
F27-Mk 600 23.56 m 29.00 m 8.50 m 8475 m 486 km/h 1890 km 44
F27-Mk 700 23.56 m 29.00 m 8.50 m 8475 m 486 km/h   40



WEIGHTS.

TYPE MAX TAXI MAX TAKE OFF MAX LANDING MAX ZERO FUEL
F27-Mk 100   18.350 kg
F27-Mk 200 20.410 kg 20.410 kg
F27-Mk 500 20.870 kg 20.820 kg 19.050 kg 17.915 kg

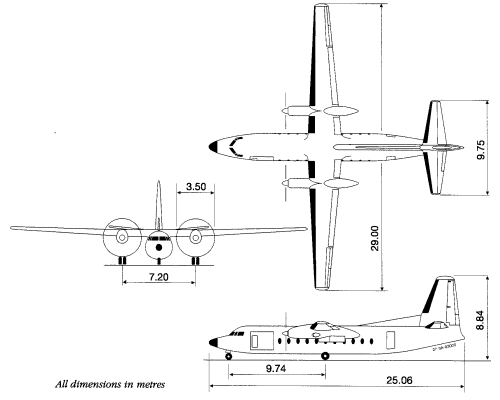

DIMENSIONS.

(Mk 500)



FAIRCHILD 27 VERSIONS.

TYPE ENGINE FIRST FLIGHT PRODUCED REMARKS
F-27 RR DART 6 Mk 514-7 or Mk 511-7E 10-04-1959 46
F-27A RR DART 7 Mk 528-7E 13-01-1959 45
F-27B RR DART 6 Mk 514-7 28-10-1958 3
F-27F RR DART 7 Mk 529-7E 31-03-1961 18
F-27J RR DART 7 Mk 532-7 30-10-1965 14
F-27M RR DART 7 Mk 532-7N 06-10-1969 2
FH-227 RR DART 7 Mk 532-7 03-05-1966 35
FH-227B RR DART 7 Mk 532-7 21-03-1967 40
FH-227C RR DART 7 Mk 532-7 FH-227 WITH LARGE PROPELLOR
FH-227D RR DART 7 Mk 532-7L 02-12-1971 3
FH-227E RR DART 7 Mk 532-7L FH-227C WITH -7L ENGINE



FAIRCHILD 27 TECHNICAL DATA.

TYPE LENGTH WINGSPAN HEIGHT CEILING SPEED RANGE PAX
F-27 23.50 m 29.00 m 8.40 m 8475 m 486 km/h 1552 km 40
F-27A 23.50 m 29.00 m 8.40 m 8475 m 486 km/h   44
F-27B 23.50 m 29.00 m 8.40 m 8475 m 486 km/h   44
F-27F 23.50 m 29.00 m 8.40 m 8475 m 486 km/h 1465 km 16
F-27J 23.50 m 29.00 m 8.40 m 8475 m 486 km/h   44
F-27M 23.50 m 29.00 m 8.40 m 8475 m 486 km/h   44
FH-227 25.50 m 29.00 m 8.41 m 8475 m 486 km/h 990 km 52
FH-227B 25.50 m 29.00 m 8.41 m 8475 m 486 km/h   52
FH-227C 25.50 m 29.00 m 8.41 m 8475 m 486 km/h   52
FH-227D 25.50 m 29.00 m 8.41 m 8475 m 486 km/h   52
FH-227E 25.50 m 29.00 m 8.41 m 8475 m 486 km/h   52



WEIGHTS.

TYPE MAX TAXI MAX TAKE OFF MAX LANDING MAX ZERO FUEL
F-27   18.350 kg
F-27F   19.050 kg
FH-227   19.730 kg
